New construction of the forestry workshop of the Burgergemeinde, Biel

2006

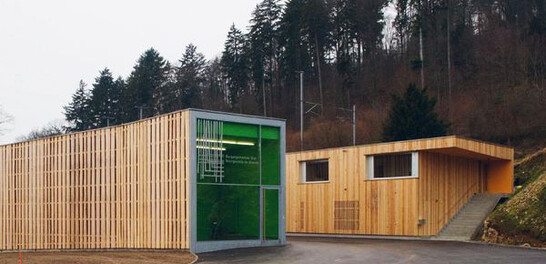

After a prequalification, the Biel architectural office Bauzeit won the competition for the new forestry workshop of the Burgergemeinde Biel. It accommodates the prescribed space program in 2 buildings on the north side of the road.

Facts and images
Construction Data
Involved
Articles
Window stop and board stack connections
Window stop and board stack connections
Detail view entrance
Detail view entrance
Korridor
Korridor

The project
The valley-side warehouse, production and sales building was planned as a single-story skeleton structure. So that the various uses could be covered with a uniform load-bearing system, a load-bearing system was chosen as follows.

The construction method
Simple columns and single, partly double main beams in the transverse direction - rafter purlins above. The administration building was constructed as a timber frame building with visible board stack ceilings. The walls also partly consist of internally visible board stacks. Ventilated formwork was mounted on top.

Wood Award Switzerland - Prix Lignum 2009

Construction Data

- Administration building

- 9 x 52 m

- 2 floors

- upper floor in timber construction

- floor area 460 m2

-

- warehouse and production building

- 10 x 70 m

- Height 5.3 m

- Total wood: 100 m3

- Floor plan area 700 m2


Timber constructioncontractors
Hector Egger Holzbau AG
4900 Langenthal


Timber construction engineers
Timbatec Holzbauingenieure Schweiz AG, Thun
3600 Thun


Client
Burgergemeinde
3989 Biel


Architect
Bauzeit Architekten GmbH
2502 Biel


Structuralanalysis
Ingenieure & Planer AG
2502 Biel


Civil engineer
Riederer & Partner GmbH
3047 Bremgarten
