Reconstruction Bälliz 29, Thun

1997

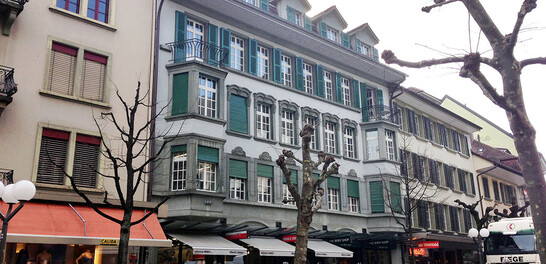

The existing building in the center of Thun was converted into business premises and apartments. On the 1st floor, three high reinforced concrete girders were installed, which protruded from above about 70 cm into the clearance gauge. The planned store was to be column-free with a smooth soffit. The existing beam layers were to remain unchanged.

Facts and images
Construction Data
Involved
Support for the ceiling
Support for the ceiling
UNP beam, end support truss
UNP beam, end support truss
Binder
Binder
Storage in the wall
Storage in the wall
Transverse compression reinforcement with hardwood
Transverse compression reinforcement with hardwood

The project
The existing beam layers were each supported by a flat UNP joist, which in turn was suspended from an overhead truss.

The construction method
These could be built into the walls on the 2nd floor (apartments) above.

Construction Data

- UNP underbeam


Timber Construction Engineers
Timbatec Holzbauingenieure Schweiz AG, Thun
3600 Thun


Civil Engineer
Mark Helmle, Engineering Office
3600 Thun


Timber Construction
Lehnherr-Eschler Alfred
3752 Wimmis
