MFH Brüggliäcker, Zürich Schwamendingen

2014

Line

The Brüggliäcker settlement is a replacement building realized by the Bahoge Construction Cooperative between the tram line and Funkwiesenstrasse in Zurich Schwammendingen.

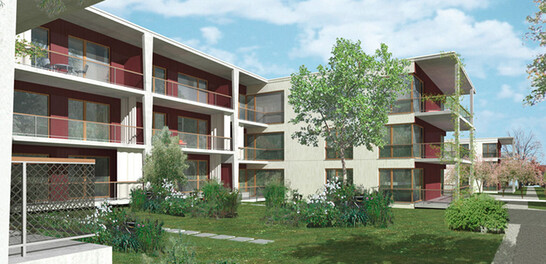

Exterior View House A zoom
Exterior View House A
Arcade in the shell of the building zoom
Arcade in the shell of the building
Detail view through load-bearing timber support zoom
Detail view through load-bearing timber support

The Construction

The settlement consists of 3 three-storey buildings: House A with 31 apartments, House B with 32 apartments and House C with 4 maisonettes.


The inner walls and story ceilings are of hybrid construction in solid construction, all outer walls in load-bearing timber construction.


The floor slabs were concreted directly onto prefabricated timber elements, which also formed the front formwork for the concrete ceiling.


The Challenge

For the shell construction phase, the completely insulated timber elements had to be protected from moisture (rain and concrete ceiling). However, the design was far less problematic than expected because the protective measures were planned right from the start and were already pre-assembled at the factory.

Construction Data

  • 3200 m² external wall elements
  • 3250 m² roof elements

Timbatec's Services

  • Preliminary project
  • Estimated cost
  • Construction project
  • Site inspections
  • Statics / Construction
  • Text for tender
  • Implementation project
  • Construction management

Civil Engineer
UBM Bauingenieure
8006 Zürich
Architect
Baumberger & Stegmeier AG
8004 Zürich
Building Physics
BWS Bauphysik
8408 Winterthur
Timber and Solid Construction
Baltensberger AG
8472 Seuzach
Building Owner
Bahoge
8000 Zürich
