MFH Wiesengrund, Küsnacht ZH

2013

Line

The MFH Wiesengrund is a four-story new building with four exclusive apartments in Küsnacht. It is the first apartment building in the canton of Zurich to bear the Minergie-A label ZH-001.

Outside view from below zoom

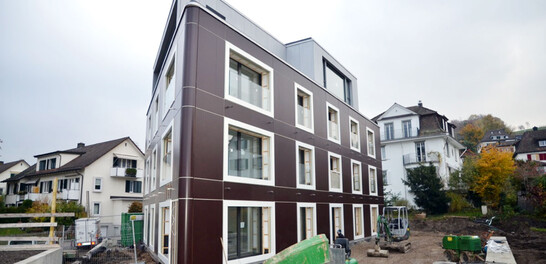

Outside view from below
Outside view from above zoom
Outside view from above
Outside view of the road from above in the shell zoom
Outside view of the road from above in the shell
Load-bearing timber walls on the ground floor before concreting the ground floor slab zoom
Load-bearing timber walls on the ground floor before concreting the ground floor slab
Concrete slab above ground floor shortly before concreting zoom
Concrete slab above ground floor shortly before concreting

The Execution

The building is a hybrid construction with a solid staircase core and floor slabs in concrete as well as load-bearing external walls in prefabricated timber construction. The retracted attic story is completely made of timber. All interior walls are constructed in drywall construction and thus allow the greatest possible flexibility for future needs of use.


The Details

The load-bearing outer walls in timber consist of 150 mm thick solid timber panels manufactured without adhesives. These also take over the vertical load transfer from the concrete ceilings. The outer insulation layer consists of an insulated, crosswise manufactured timber grid, each 120 mm thick, and is covered with a DHF panel. The elements were prefabricated in such a way that they already integrated the end formwork for the concrete slab and the support for the wall above it. The façade consists of a ventilated, large-format mineral panel (Rockpanel), which was subsequently installed on the building.

Construction Data

  • 430 m² solid timber panels nailed d = 150 mm
  • 170 m² roof elements hollow box h = 380 mm
  • 310 m² Rockpanel facade cladding
  • 130 m² facade cladding vertical timber formwork

Timbatec's Services

  • Preliminary project
  • Fire prevention
  • Estimated cost
  • Construction project
  • Statics / Construction
  • Text for tender
  • Implementation project
  • Construction management
  • Site inspections


Ecological Fregrance brand on Zürch's Gold Coast

Sunday Newspaper of 13.04.2014


Futuristic Through Closeness to Nature

Zürchersee Zeitung District Meilen from 25.04.2014

Architect
Krayer&Smolenicky Architekten GmbH
8004 Zürich

Civil Engineer
UBM Bauingenieure
8006 Zürich
Building Physics
Bakus Bauphysik
8045 Zürich
Building Services Engineering
Ernst Basler Partner
8032 Zürich
