Second wildlife overpass with wooden cover

26.04.2021

Line

After Rynetel, the Federal Roads Office "FEDRO" is already building the second wildlife overpass with a wooden roof near Neuenkirch. Timbatec planned this structure as sub-planner of the engineering consortium IG 2B with B + S AG and Bänziger Partner AG. From March 28, the wooden beams will be installed.

A wildlife overpass over the A2 is being built near Neuenkirch. The work on Switzerland's second wildlife overpass with a wooden superstructure has been underway since summer 2020. In the meantime, the central support and the concrete abutment walls have been constructed.

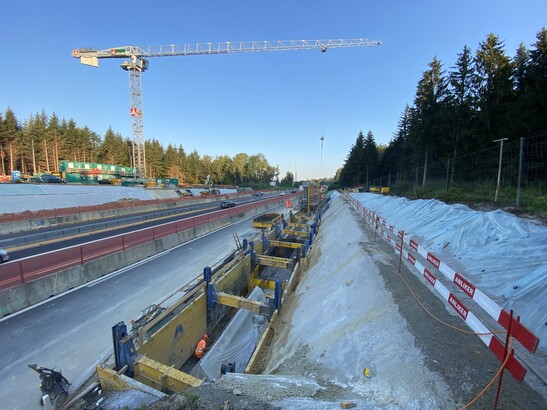

Bauarbeiten WTK Luzern

In the next work step, the wooden girders will be installed to cover the roadway. For the timber construction parts, traffic routing must be diverted at night. From Sunday, 28 March 2021 until presumably mid-May 2021, traffic will be routed in one lane durning night.


The work speed depends on weather conditions. In the first phase, the wooden beams will be inserted, the ceiling constructed and the sealing laid over the roadway in the direction of Gotthard. For these works, traffic is expected to be restricted to a single lane in the direction of Basel for fifeteen nights. The same work will then be carried out in the direction of Basel. During the day, two lanes will be available in both directions.

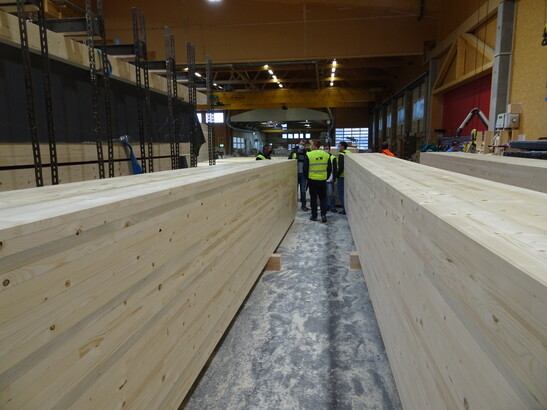

Herstellung Träger WTK Luzern

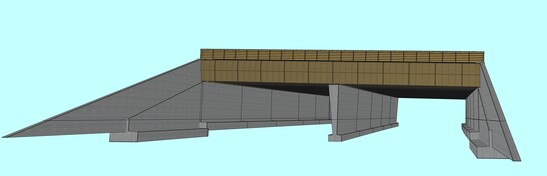

The wildlife overpass will have a width of 50 metres and a length of around 36 metres. The clear height is 4.80 metres. The structure is well integrated into the landscape and is largely made of wood. The wood used comes from Switzerland.a The use of wooden superstructure makes sense from an ecological point of view. Because: Wood stores large amounts of CO₂ thanks to photosynthesis. To ensure fast and smooth assembly, all beams were prefabricated at "neue Holzbau AG" in Lungern, pre-assembled and delivered to the construction site just in time. Timbatec is responsible for the statics and the construction of this structure.

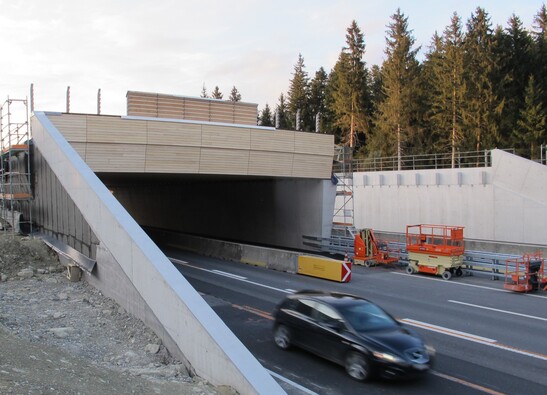

Bild Portal WTK Luzern

Image: HUSNER AG Holzbau


From the beginning of summer, drivers will see this bridge portal before they pass under the wooden bridge. The costs for the wildlife overpass amount to around 10.7 million Swiss francs.
